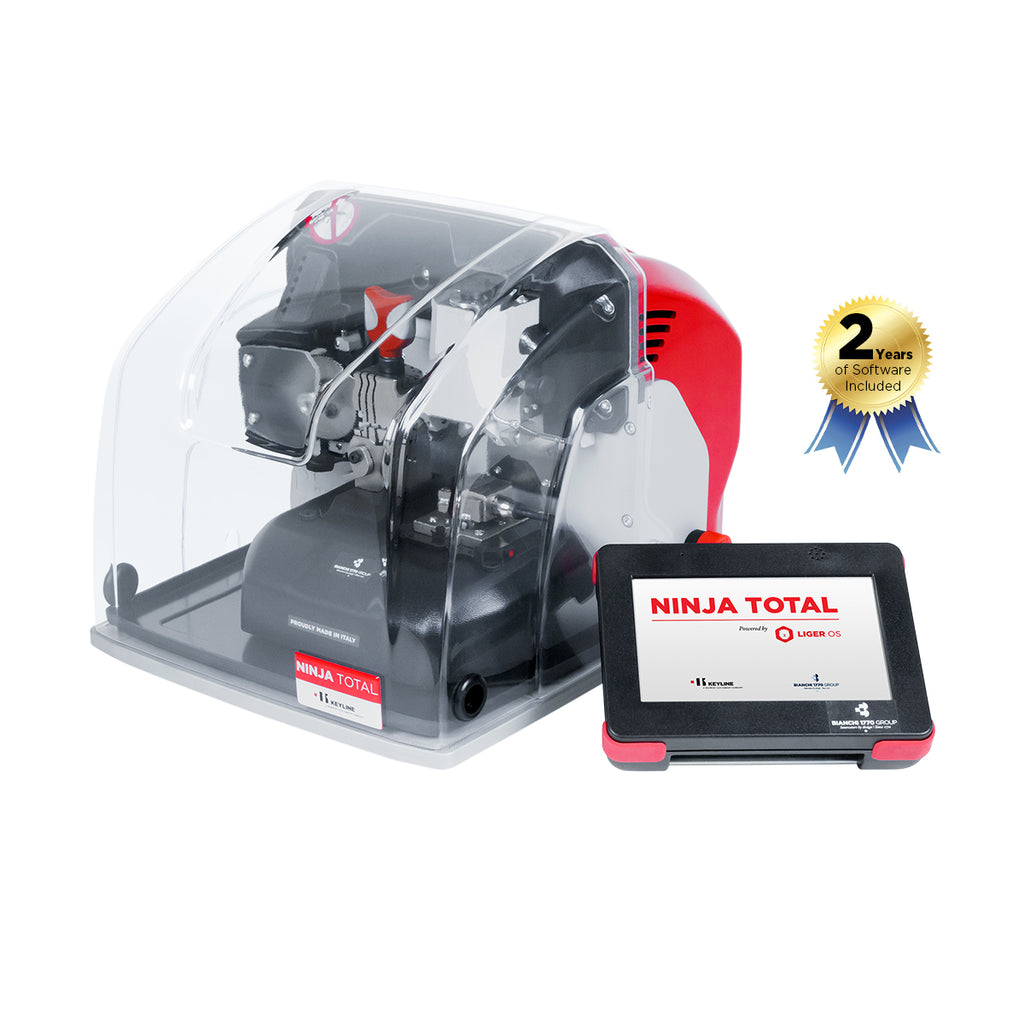

Ninja Total (North America) - Key Cutting Machine for Edge Cut, Laser and Dimple Keys
-
FAST DELIVERY
-
EXCELLENT CUSTOMER SERVICE
-
EXCELLENT TECH SUPPORT
PRODUCT HIGHLIGHTS
Ninja Total is the exclusive all-in-one electronic key cutting machine that copies, decodes, and cuts by code edge cut keys and decodes and cuts by code laser and dimple keys.
DETAILS
Versatile and complete. The combination of two key-cutting stations makes it possible to cut both residential and car keys, with a single machine, quickly and easily, without sacrificing quality and precision during the cutting process. Ninja Total is available with the optional engraving function for the head of the keys, through the dedicated C25 clamp. An engraving clamp is also available.
Quick and performing. The high-quality technology based on the combined action of three axes and two powerful motors allows the key cutting in a single pass, speeding up machine performance.
Ergonomic and sturdy. Easy to handle and use, thanks to its wide operating station, Ninja Total is the ideal tool in all situations, for all jobs and environments.
Easy and intuitive. The advanced Liger Software developed by Keyline makes Ninja Total easy to use through an intuitive user interface, supported by an industrial console that allows quick access to one of the most complete key databases in the market.
WHO IS THIS PRODUCT DESIGNED FOR?
Ninja Total is the ideal machine for locksmiths who want to offer a key cutting service with a complete and high-performing tool.
INCLUDES STANDARD PARTS
- A03 Clamp
- C30 Clamp
- 63mm Carbide Cutter
- V003 High Security Cutter
- T01 High Security Tracer
- V001 Dimple Cutter
- T02 Dimple Tracer
- AV12 Ford Adaptor
- 4mm T-Handle Wrench
- 4 GB Flash Drive
- 5 Key Blanks
SUPPORTED KEYS
- Tibbe Keys
- High Security Keys
- Laser Keys
- Dimple Keys
- Edge Cut Keys
- Tubular Keys
ACCESSORIES FOR THIS MACHINE: You can find them here on our online store
New clamp. Ninja Total is equipped with the new, exclusive C30 clamp for the majority of dimple and laser keys, and with a large set of small milling cutters to cut the most popular keys.
Spare Parts
- A02 Clamp - High Security
- A04 Clamp - High Security
- C25 Clamp - Engraving
- C41 Clamp - Tibbe
- V000 Cutter - Engraving
- AD05 Adaptor - Infiniti/Mercedes
- AD06 Adaptor - Lexus/Hyundai/Kia
- AD09 Adaptor - Volvo
- Honda High Security Test Blade - BH001
- Ford/Land Rover High Security Test Blade - BFD40-I
- BMW 4-Track High Security Test Blade - BS7BW
- Toyota & Lexus Universal Test Blade - BTR490B
- Audi/Volkswagen High Security Test Blade - BHU66
- Mercedes High Security 4-Track Test Blade - BS48HF
TECHNICAL SPECIFICATION
|
Power Supply |
110V 50-60Hz /220 |
|
External Connections |
2 USB 2.0 ports; 2 RS232 serial ports; 1 LAN port |
|
Cutter |
EDGE CUT KEY SIDE: 63 mm carbide cutter LASER KEY SIDE: 2.5mm |
| Motor | EDGE CUT SIDE: Asynchronous, 0.18 KW LASER KEY SIDE: DC electronic motor |
|
Key Reading Systems |
EDGE CUT KEY SIDE: mechanical tracer with linear sensor LASER, DIMPLE KEY SIDE: electric contact |
|
Absorption |
250W (35W in stand-by) |
|
Dimensions |
Width: 15"/ Depth: 17"/ Height: 13" |
|
Lighting |
2 LED STRIPS - lighted cutting bay |
|
Movements/Axes |
3 stepper motor-operated axes |
|
Cutter Speed |
EDGE CUT KEY SIDE: 1500-3000 rpm (variable speed according to the programs) DIMPLE KEY AND LASER KEY SIDE: 13,000 rpm |
|
Gauge |
EDGE CUT KEY SIDE: Automatic gauge unlock through the movement of the axes |
|
Electronic Equipment |
Mainboard with ARM Cortex A8 CPU, 256 MB RAM, NAND 1 GB memory, high-resolution axes control |
| Clamps | EDGE CUT KEY SIDE: 4 sided LASER/DIMPLE KEY SIDE:A02, A03, C30 |
|
Weight |
65 lbs. |
PRODUCT HIGHLIGHTS
Ninja Total is the exclusive all-in-one electronic key cutting machine that copies, decodes, and cuts by code edge cut keys and decodes and cuts by code laser and dimple keys.
DETAILS
Versatile and complete. The combination of two key-cutting stations makes it possible to cut both residential and car keys, with a single machine, quickly and easily, without sacrificing quality and precision during the cutting process. Ninja Total is available with the optional engraving function for the head of the keys, through the dedicated C25 clamp. An engraving clamp is also available.
Quick and performing. The high-quality technology based on the combined action of three axes and two powerful motors allows the key cutting in a single pass, speeding up machine performance.
Ergonomic and sturdy. Easy to handle and use, thanks to its wide operating station, Ninja Total is the ideal tool in all situations, for all jobs and environments.
Easy and intuitive. The advanced Liger Software developed by Keyline makes Ninja Total easy to use through an intuitive user interface, supported by an industrial console that allows quick access to one of the most complete key databases in the market.
WHO IS THIS PRODUCT DESIGNED FOR?
Ninja Total is the ideal machine for locksmiths who want to offer a key cutting service with a complete and high-performing tool.
INCLUDES STANDARD PARTS
- A03 Clamp
- C30 Clamp
- 63mm Carbide Cutter
- V003 High Security Cutter
- T01 High Security Tracer
- V001 Dimple Cutter
- T02 Dimple Tracer
- AV12 Ford Adaptor
- 4mm T-Handle Wrench
- 4 GB Flash Drive
- 5 Key Blanks
SUPPORTED KEYS
- Tibbe Keys
- High Security Keys
- Laser Keys
- Dimple Keys
- Edge Cut Keys
- Tubular Keys
ACCESSORIES FOR THIS MACHINE: You can find them here on our online store
New clamp. Ninja Total is equipped with the new, exclusive C30 clamp for the majority of dimple and laser keys, and with a large set of small milling cutters to cut the most popular keys.
Spare Parts
- A02 Clamp - High Security
- A04 Clamp - High Security
- C25 Clamp - Engraving
- C41 Clamp - Tibbe
- V000 Cutter - Engraving
- AD05 Adaptor - Infiniti/Mercedes
- AD06 Adaptor - Lexus/Hyundai/Kia
- AD09 Adaptor - Volvo
- Honda High Security Test Blade - BH001
- Ford/Land Rover High Security Test Blade - BFD40-I
- BMW 4-Track High Security Test Blade - BS7BW
- Toyota & Lexus Universal Test Blade - BTR490B
- Audi/Volkswagen High Security Test Blade - BHU66
- Mercedes High Security 4-Track Test Blade - BS48HF
TECHNICAL SPECIFICATION
|
Power Supply |
110V 50-60Hz /220 |
|
External Connections |
2 USB 2.0 ports; 2 RS232 serial ports; 1 LAN port |
|
Cutter |
EDGE CUT KEY SIDE: 63 mm carbide cutter LASER KEY SIDE: 2.5mm |
| Motor | EDGE CUT SIDE: Asynchronous, 0.18 KW LASER KEY SIDE: DC electronic motor |
|
Key Reading Systems |
EDGE CUT KEY SIDE: mechanical tracer with linear sensor LASER, DIMPLE KEY SIDE: electric contact |
|
Absorption |
250W (35W in stand-by) |
|
Dimensions |
Width: 15"/ Depth: 17"/ Height: 13" |
|
Lighting |
2 LED STRIPS - lighted cutting bay |
|
Movements/Axes |
3 stepper motor-operated axes |
|
Cutter Speed |
EDGE CUT KEY SIDE: 1500-3000 rpm (variable speed according to the programs) DIMPLE KEY AND LASER KEY SIDE: 13,000 rpm |
|
Gauge |
EDGE CUT KEY SIDE: Automatic gauge unlock through the movement of the axes |
|
Electronic Equipment |
Mainboard with ARM Cortex A8 CPU, 256 MB RAM, NAND 1 GB memory, high-resolution axes control |
| Clamps | EDGE CUT KEY SIDE: 4 sided LASER/DIMPLE KEY SIDE:A02, A03, C30 |
|
Weight |
65 lbs. |
